Layout concept or theme

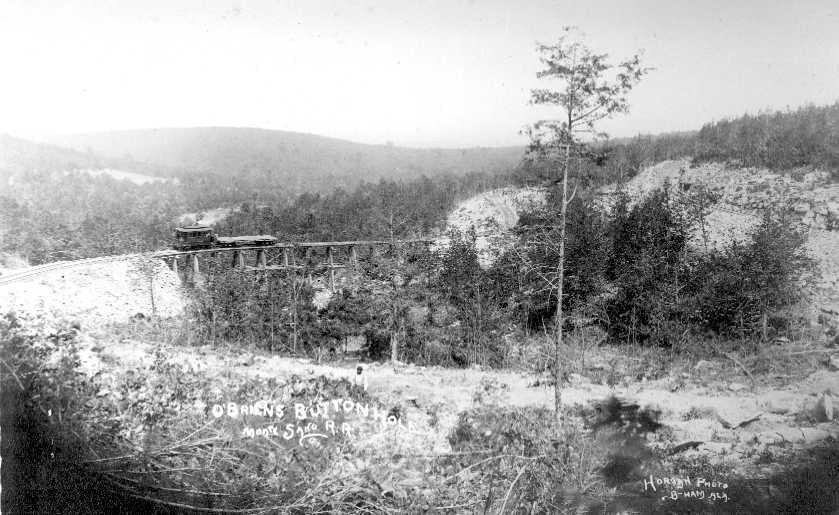

For most of the past 40 years, I have lived in Huntsville, Alabama.  Back in the late 1800s, a resort hotel was build atop Monte Sano Mountain, which is on the east side of the town.  The Huntsville Belt Line and Monte Sano Railroad was built to transport visitors up the mountain to the hotel.  The Monte Sano Railroad was a standard gauge affair with a single 26 ton Baldwin steam dummy engine, and its primary rolling stock was a few passenger cars and one or more gondolas for hauling rock.  I have some photos of the railroad under construction, when cuts were being made thru the rock of the mountain; and, at that time, the little loco was hauling building materials and crushed gravel for the ballast.  The photo below shows the most spectacular part of the railway, a loop called O'Brien's Buttonhole.  In this picture, the roadbed enters from downhill at about 12:00, loops left across the great trestle, crosses left to right in the foreground, exits the picture at about 5:00, re-enters about 3:00, and finally exits headed uphill at about 1:00.  There is a second, smaller trestle just out of the picture to the right.   It does not take too much imagination to transform this open loop into a closed loop for a micro layout; and that is what I intend to do.  You will be able to see and judge my success for yourself.

Scenes from Monte Sano RR as they will appear on the layout.

Click on thumbnails to see full sized picture.

Black and white photos are historic, color are model scenes.

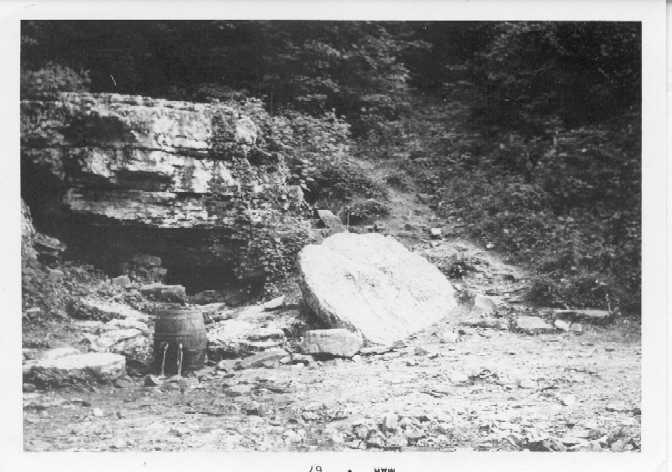

Cabelet


Spring

Calebet Spring.jpg (41151 bytes)

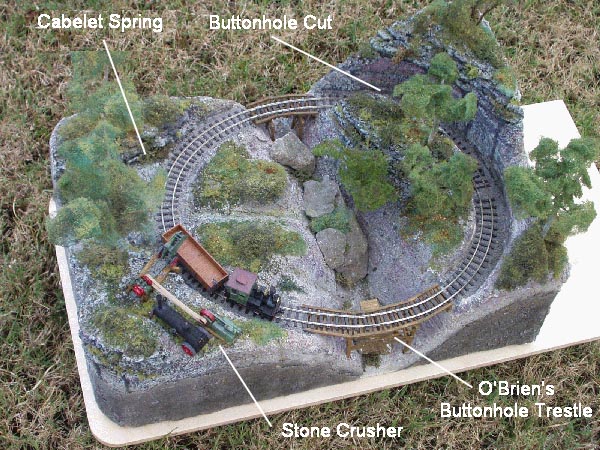

Layout w/scenes

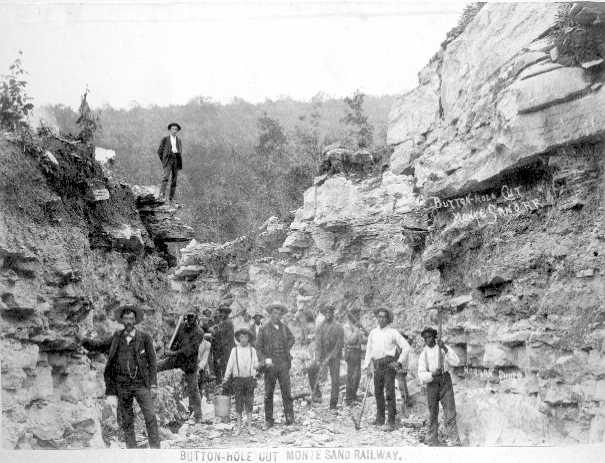

Buttonhole
Buttonhole Cut.jpg (44009 bytes)
Cut

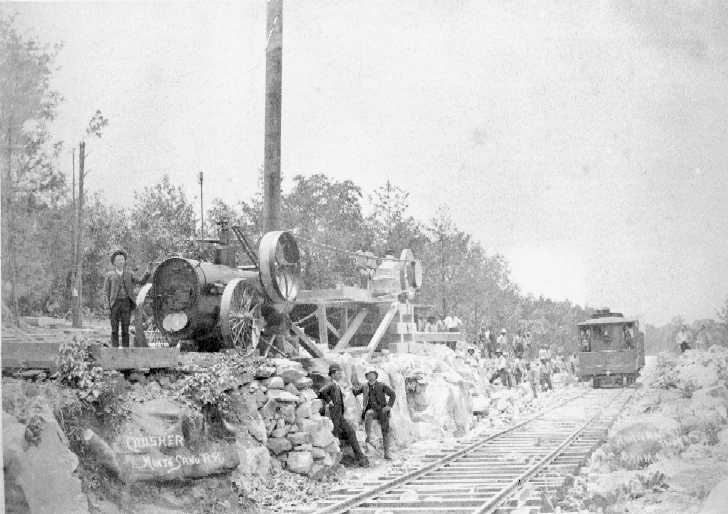

Stone
Stone Crusher.jpg (42008 bytes)

Crusher


Layout Details

Name of railroad

Monte Sano Railroad

Scale

HO (1:87)

Gauge HOn30 - 30" gauge

Size

11" x 17"

Prototype

Scenery - Monte Sano Railroad, Huntsville, Alabama, USA
Rolling Stock - no specific prototype, but the Egger-Bahn Fiery Elias is reminiscent of the Baldwin steam dummy used on the Monte Sano Railroad

Locale

North Central Alabama in the foothills of the last of the Appalachian Mountains

Places along the route

O'Briens Buttonhole
Buttonhole Cut
Cabelet Spring
Stone Crusher

Period

Scenery - late 1800s
Rolling Stock - not specific now, but could get more authentic to the Monte Sano Railroad later.

Layout style

Micro Layout - area equal to two A sized sheets of paper

Layout height

How high do you want it?

Benchwork

Styrofoam

Roadbed

Styrofoam

Track

Shinohara code 60 flextrack

Turnouts

None

Min. curve radius

6"

Maximum grade

0 percent

Scenery construction

Plaster cloth over styrofoam

Control

DC - no need for anything fancier
